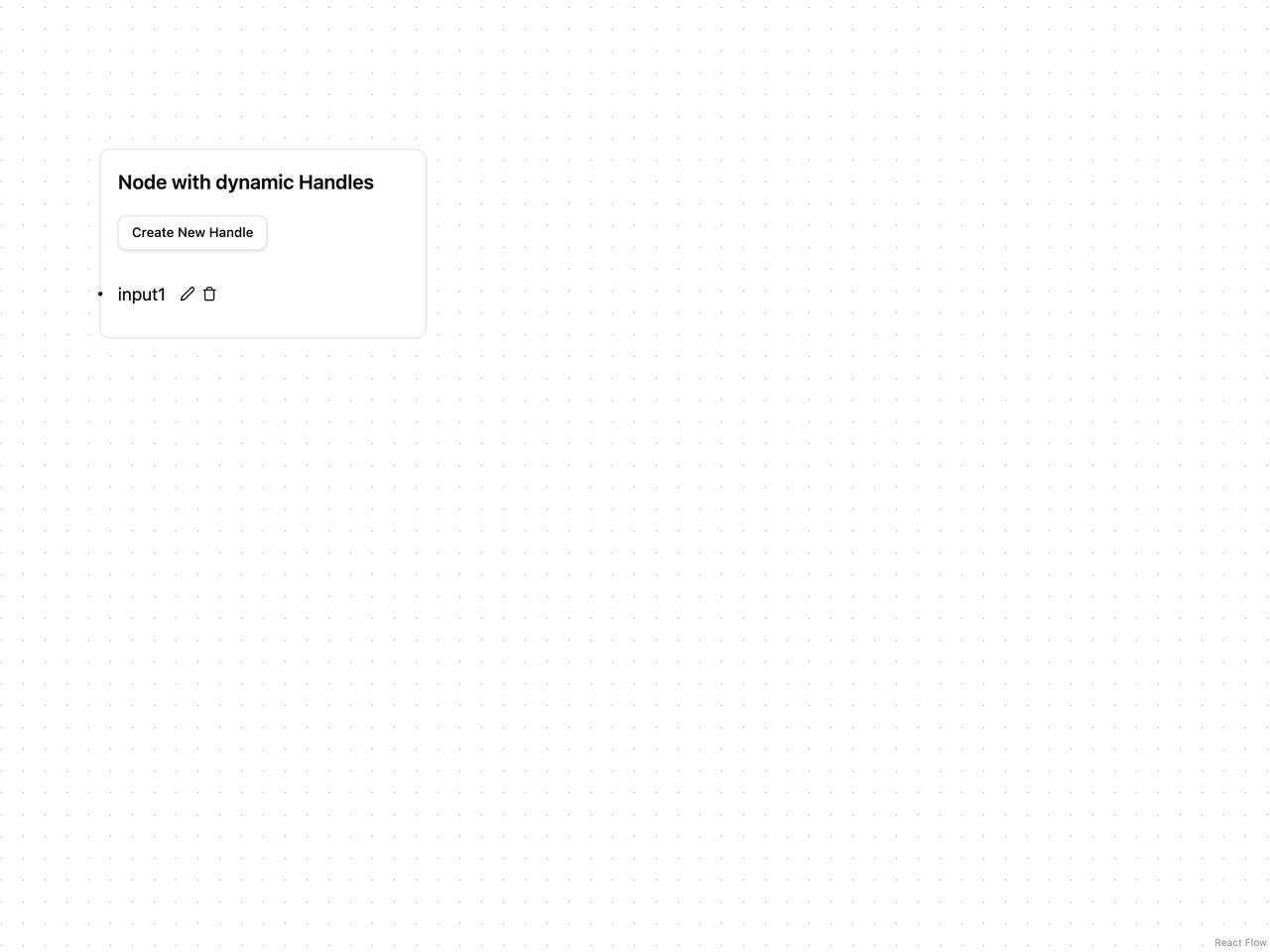

A React Flow handle for node inputs/outputs that lets users add, rename, describe, and delete handles inline via a popover editor.
"use client";
import "@xyflow/react/dist/style.css";
import {
addEdge,
applyEdgeChanges,
applyNodeChanges,
Background,
type Connection,
type EdgeChange,
type Node,
type NodeChange,
type NodeProps,
type NodeTypes,
Position,
ReactFlow,
ReactFlowProvider,
useUpdateNodeInternals,
} from "@xyflow/react";
import { nanoid } from "nanoid";
import { useCallback, useState } from "react";
import { Button } from "@/components/ui/button";
import {
EditableHandle,
EditableHandleDialog,
} from "@/components/ui/editable-handle";
const DynamicHandlesNode = ({ id }: NodeProps<Node>) => {
const updateNodeInternals = useUpdateNodeInternals();
const [handles, setHandles] = useState<
{ id: string; name: string; description?: string }[]
>([
{
id: "1",
name: "input1",
description: "Input 1 description",
},
]);
const handleCreate = useCallback(
(name: string, description?: string) => {
const newHandle = {
id: `handle-${nanoid()}`,
name,
description,
};
setHandles((prev) => [...prev, newHandle]);
updateNodeInternals(id);
return true;
},
[id, updateNodeInternals],
);
const handleUpdate = useCallback(
(handleId: string, newName: string, newDescription?: string) => {
setHandles((prev) =>
prev.map((handle) =>
handle.id === handleId
? {
...handle,
name: newName,
description: newDescription,
}
: handle,
),
);
return true;
},
[],
);
const handleDelete = useCallback(
(handleId: string) => {
setHandles((prev) => prev.filter((handle) => handle.id !== handleId));
updateNodeInternals(id);
},
[id, updateNodeInternals],
);
return (
<div className="py-4 border rounded-lg bg-background w-[300px]">
<h2 className="text-lg font-semibold mb-4 px-4">
Node with dynamic Handles
</h2>
<EditableHandleDialog
variant="create"
label=""
onSave={handleCreate}
onCancel={() => {}}
align="start"
>
<Button variant="outline" size="sm" className="h-8 ml-4">
Create New Handle
</Button>
</EditableHandleDialog>
<div className="mt-4 space-y-2">
{handles.map((handle) => (
<div key={handle.id} className="flex items-center gap-2">
<EditableHandle
nodeId={id}
handleId={handle.id}
name={handle.name}
description={handle.description}
type="target"
position={Position.Left}
wrapperClassName="w-full"
onUpdateTool={handleUpdate}
onDelete={handleDelete}
/>
</div>
))}
</div>
</div>
);
};
const nodeTypes: NodeTypes = {
"editable-handle-node": DynamicHandlesNode,
};
const initialNodes = [
{
id: "node-1",
type: "editable-handle-node",
position: { x: 0, y: 0 },
data: {},
},
];
export default function EditableHandleDemo() {
const [nodes, setNodes] = useState<Node[]>(initialNodes);
const [edges, setEdges] = useState([]);
const defaultViewport = { x: 100, y: 150, zoom: 1.1 };
const onNodesChange = useCallback(
(changes: NodeChange<Node>[]) =>
setNodes((nds) => applyNodeChanges(changes, nds)),
[],
);
const onEdgesChange = useCallback(
(changes: EdgeChange<never>[]) =>
setEdges((eds) => applyEdgeChanges(changes, eds)),
[],
);
const onConnect = useCallback(
(connection: Connection) => setEdges((eds) => addEdge(connection, eds)),
[],
);
return (
<div className="w-full h-screen">
<ReactFlowProvider>
<ReactFlow
nodes={nodes}
edges={edges}
onNodesChange={onNodesChange}
onEdgesChange={onEdgesChange}
onConnect={onConnect}
nodeTypes={nodeTypes}
defaultViewport={defaultViewport}
>
<Background />
</ReactFlow>
</ReactFlowProvider>
</div>
);
}
Part of simple-ai — browse the full library on 21st.dev.
